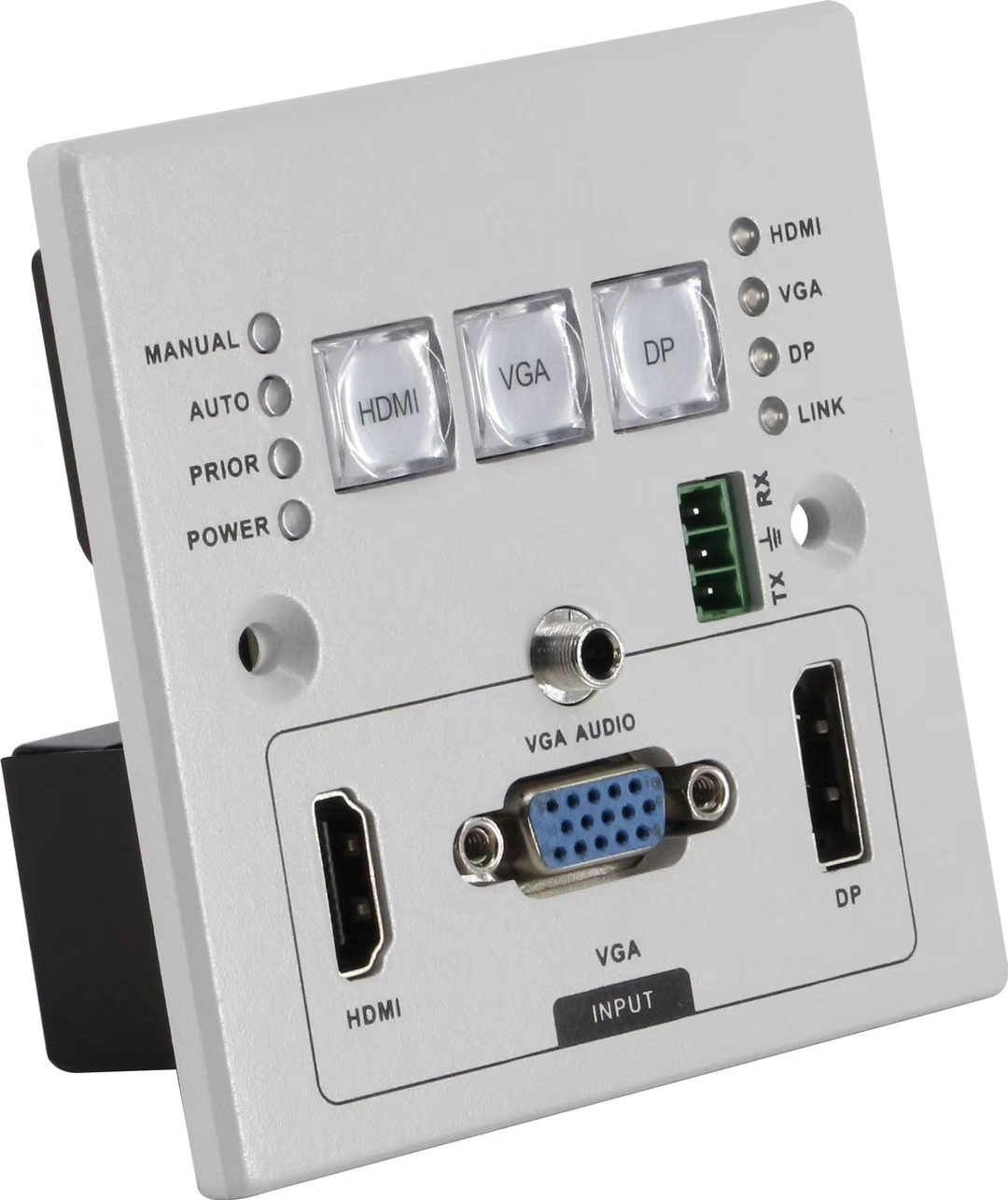

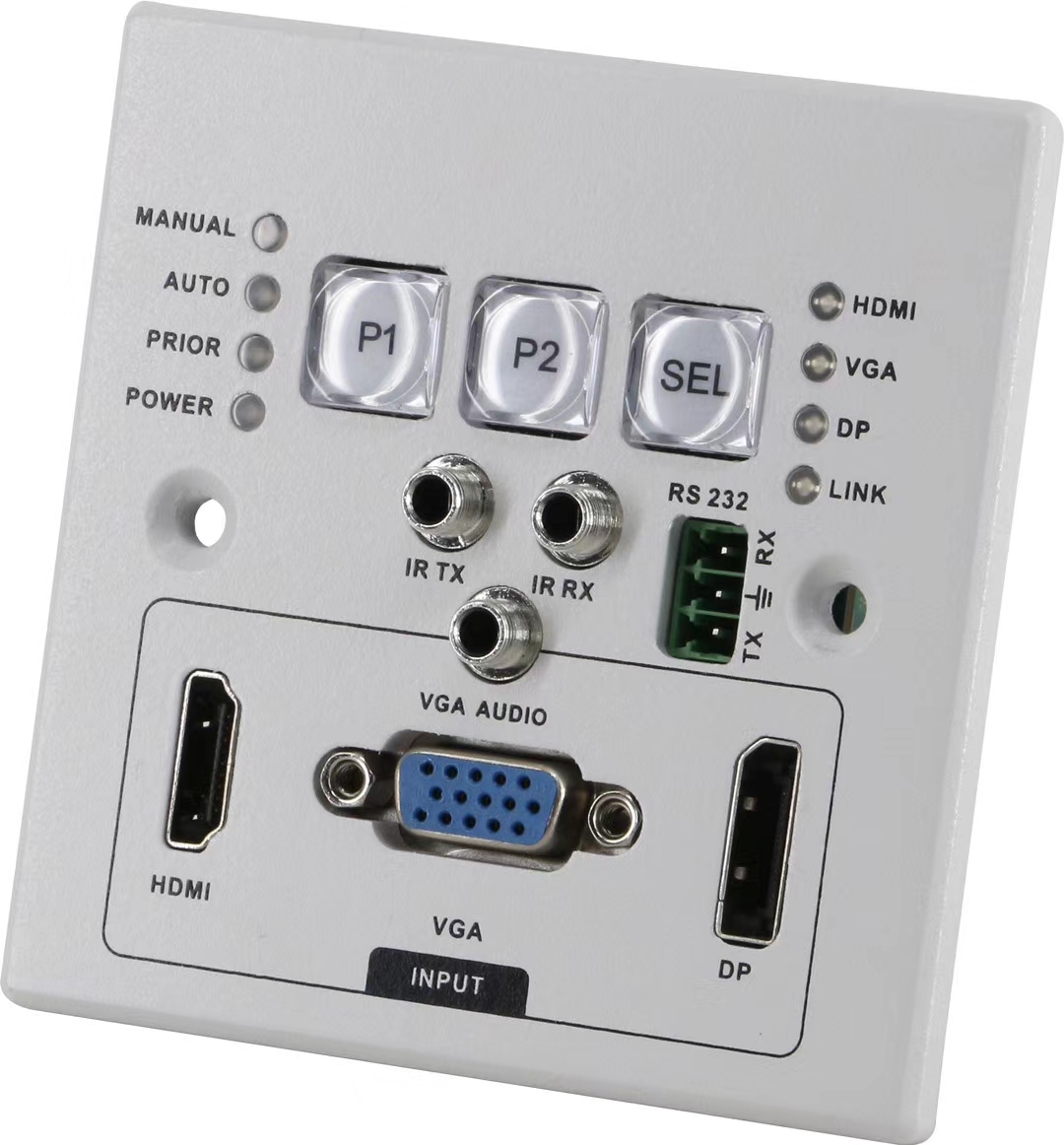

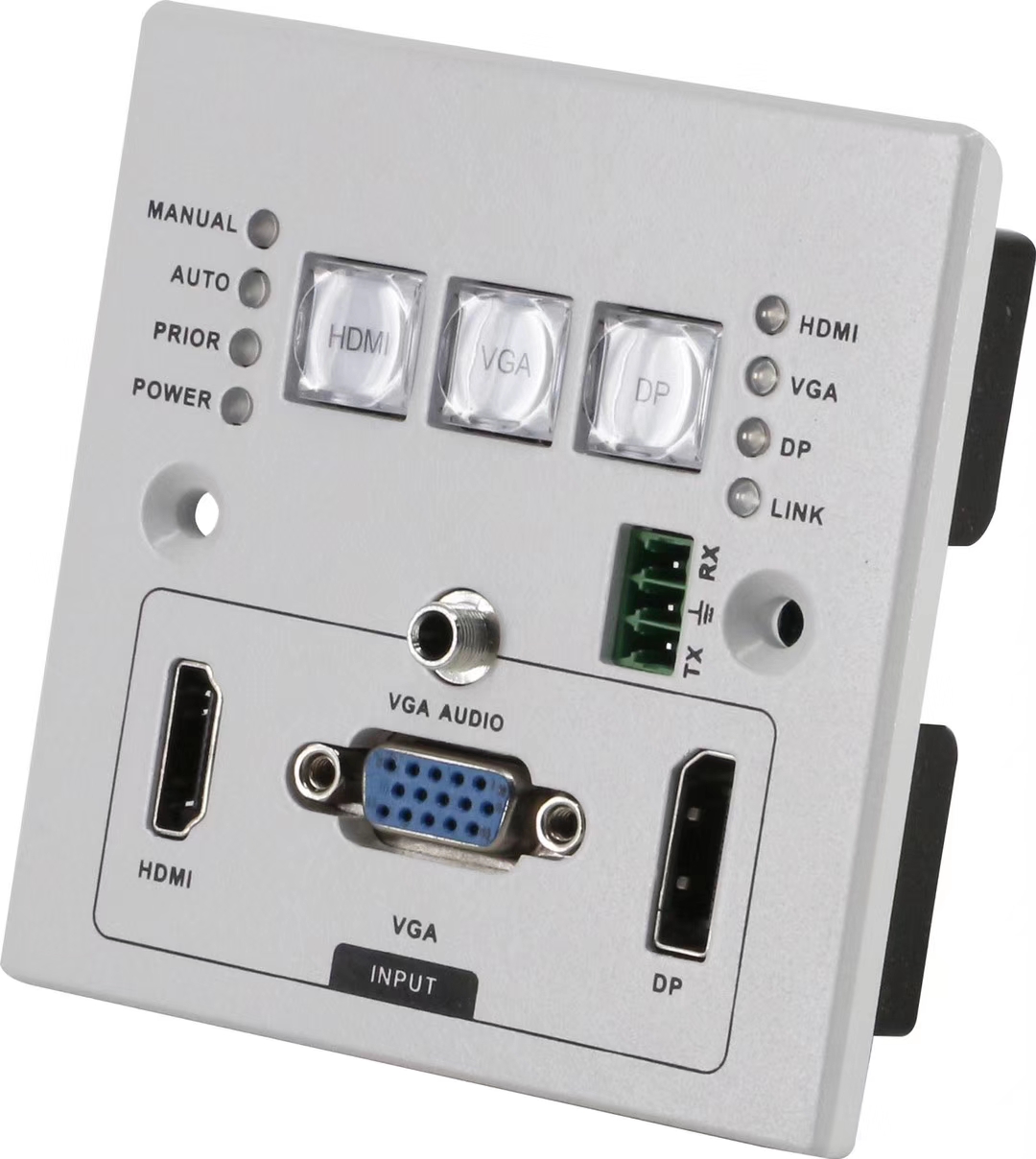

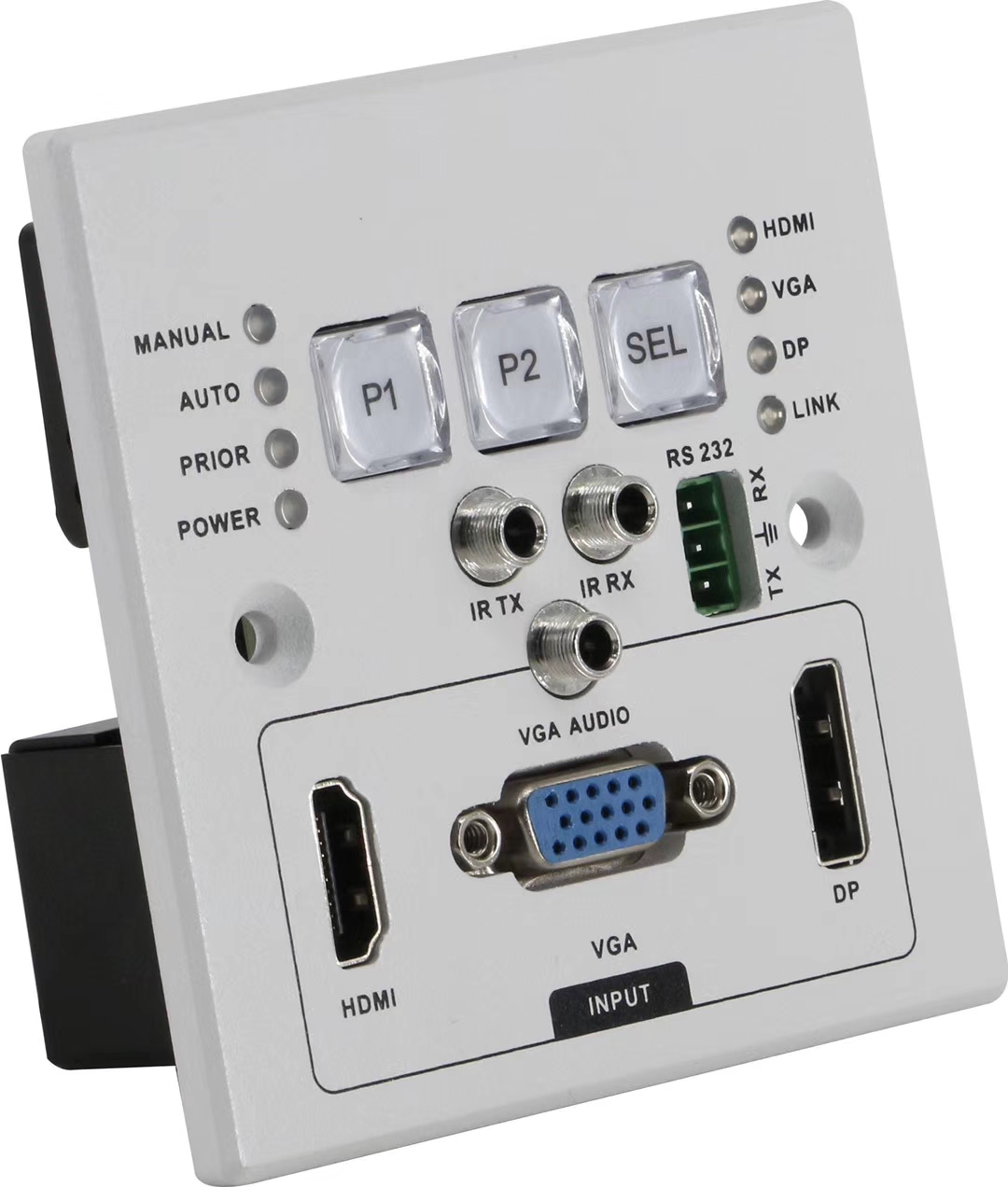

Multi-interface HDBaseT transmitter

Multi-interface HDBaseT transmitter   HS-HDBT-WALL-HDVP-70T   (70米）

一、product description:

4K30 HD Extender HDBaseT Transmitter which supports 1*HD and 1*VGA+3.5mm audio 1*DisplayPort inputs, bi-directional IR over single HDBaseT(RJ45) output. 4K30 HD Extender HDBaseT Transmitter also supports three working modes: Manual, Auto or Priority.

4K30 HD Extender HDBaseT Transmitter is an HDBaseT Wallplate transmitter which supports 1*HD and 1*VGA+3.5mm audio 1*DisplayPort inputs, bi-directional IR over single HDBaseT(RJ45) output. 4K30 HD Extender HDBaseT Transmitter also supports three working modes: Manual, Auto or Priority. The resolution can up to 4k@30hz, with the POC(power over cable) function, users can only power on the HDBaseT receiver. 4K30 HD Extender HDBaseT Transmitter also supports bi-directional IR.

4K30 HD Extender HDBaseT Transmitter can up to 220ft/70m at 1080P60, 110ft/35m at 4K30 via Cat5e/Cat6. 4K30 HD Extender HDBaseT Transmitter is popularly used in the small meeting room, classroom or other long distance transmission applications.

二、Product Features:

• DisplayPort+HD+VGA HDBaseT Wallplate Transmitter

• Supports 1080P 3D, and resolution up to 4K30

• Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K30)

• Supports bi-directional IR

• Supports PC software preset via RS232

• Supports POC(power over Cable), POE function

• Supports switch buttons, RS232, touch switch and automatic switch, LED working indicator

三、Technical indicators:
