64x64 Matrix Switch

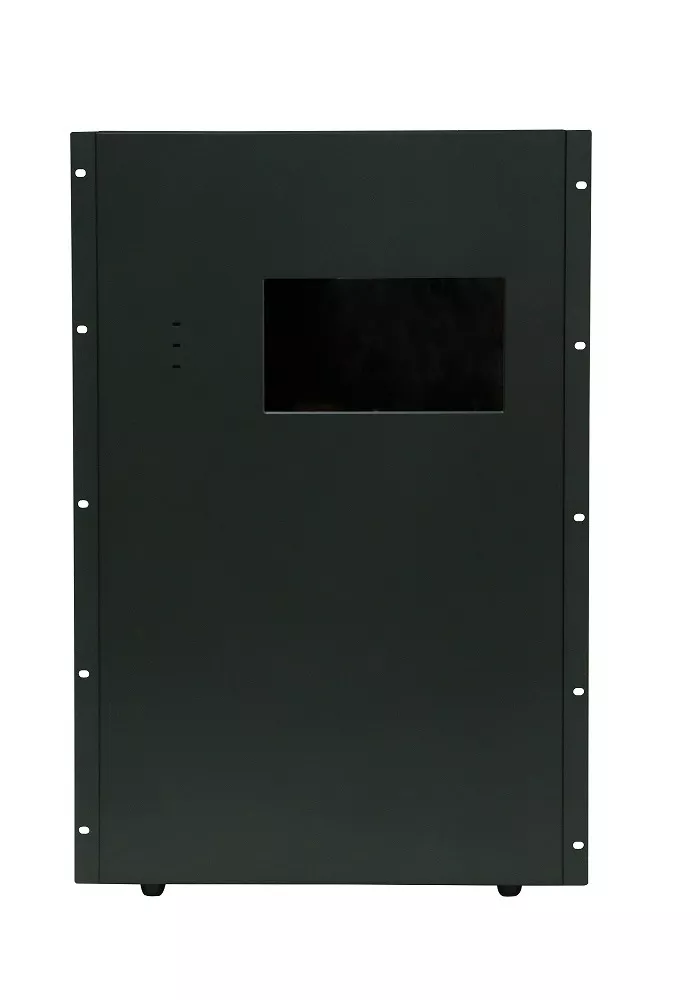

64x64 Matrix Switch   HS-6664M-64WEB

一、Product introduction:

This is a modular matrix switcher, with 64 input slots and 64 output slots, so it can support maximum 64 inputs and 64 outputs, all the input and output cards are using 1-card 1-port, the signals are including the DVI, HD, HDBasT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.


The single channel signal switching speed can reach 12.5Gbps, and the main board is using Four core four links processing technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make sure the image High fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, the internal data switch has super strong capacity of resisting disturbance and long continuous and stable working ability. Supports 7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and the 3rd parties central control by the the RS232 control commands.

With the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector, electric curtain and TVs.




二、Product characteristics:

• Modular designing chassis, with 9 input slots and 9 output slots;

• 1-card 1-port input and output card;

• Supports 1080P, 4K30 and 4K60 cards for selections;

• Supports DVI-I/ HD/ 3GSDI/ HDBaseT/ Fiber to mix input and output;

• Support Video wall and seamless switching with the 1080P and 4K60 cards;

• Support 3.5mm audio embedded and de-embedd function;

• Support up/down scaling function via the DIP switch;

• Support dual LAN and RS232 ports for backup control;

• Front buttons with background lights, easier to operate at any time;

• Support auto saving protection and auto recovery function while power cut;

三、Technical indicators

Description	64x64 Modular Matrix System Chassis
Input	1-card 4-port input, including DVI/HD/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber
Output	1-card 4-port output, including DVI/HD/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber
Protocol Standard	Support HD1.4, HD2.0, DVI1.0.   HDCP1.4, HDP2.2
Color Space	Support RGB444, YUV444, YUV422 , x.v.C standard color extension
Resolution	640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz(HDTV )
Distance	HD/DVI: 15m/40ft ; HDBaseT: 70m/220ft; Fiber: 2km/6000ft
Control	iOS/Android Apps, WEB GUI, RS232 & 10" Color Touchscreen
Power	AC: 110V—260V 50/60Hz
Consumption	180W(No Cards)
Dimension	16U, 482*390*726(mm)/ 18.97*15.35*28.58(inch)
Weight	28kg/61.7294lbs (No Cards)
Work Temperature	0℃ ~50℃
Storage Temperature	-20℃ ~55℃

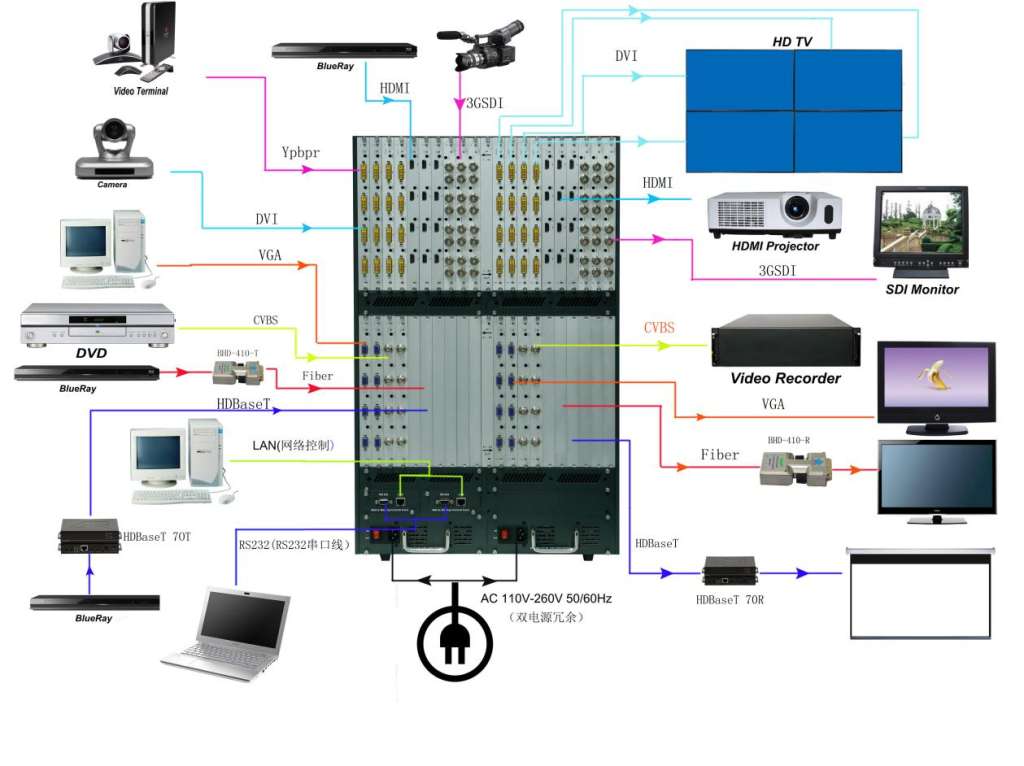

四、Connection diagram:



五、Part of the operation interface：
