8-channel HDMI matrix

HDMI high definition matrix    HS-H0808A-4K

一、Product Introduction:

HS-H0808A-4K Series HDMI Matrix is a professional 4K HD fixed seamless switching matrix, supporting 4/8/16 HDMI inputs, 4/8/16 HDMI outputs. The input and output support HDMI1.4, and the maximum output resolution is 3840x2160@30Hz. The equipment control mode is flexible and diverse, including bidirectional serial port control, button, RJ45 and other control. EDID management is supported to ensure compatibility with sources and operations in a variety of application scenarios.

二、 Product Features:

• Support seamless and fast switching from multiple inputs to multiple outputs;

• Support HDMI1.4, the highest resolution 3840x2160@30Hz;

• Color space supports RGB, YCbCr4:4:4, YCbCr4:2:2, etc.;

• Input 7 built-in EDIDs, 3840x2160@30Hz stereo (default), support custom EDID;

• Input compatible DVI/HDMI signal;

• The first input and output supports CEC control;

• Default 9 output resolutions are optional;

• The output signal format supports HDMI and DVI;

• Support power-off memory function;

• Support HDMI interface continuous hot swapping;

• Support standby, low power standby;

• Support two-way serial port control, button, RJ45 control;

• 1U height 19-inch standard cabinet mount chassis;

三、Specifications:

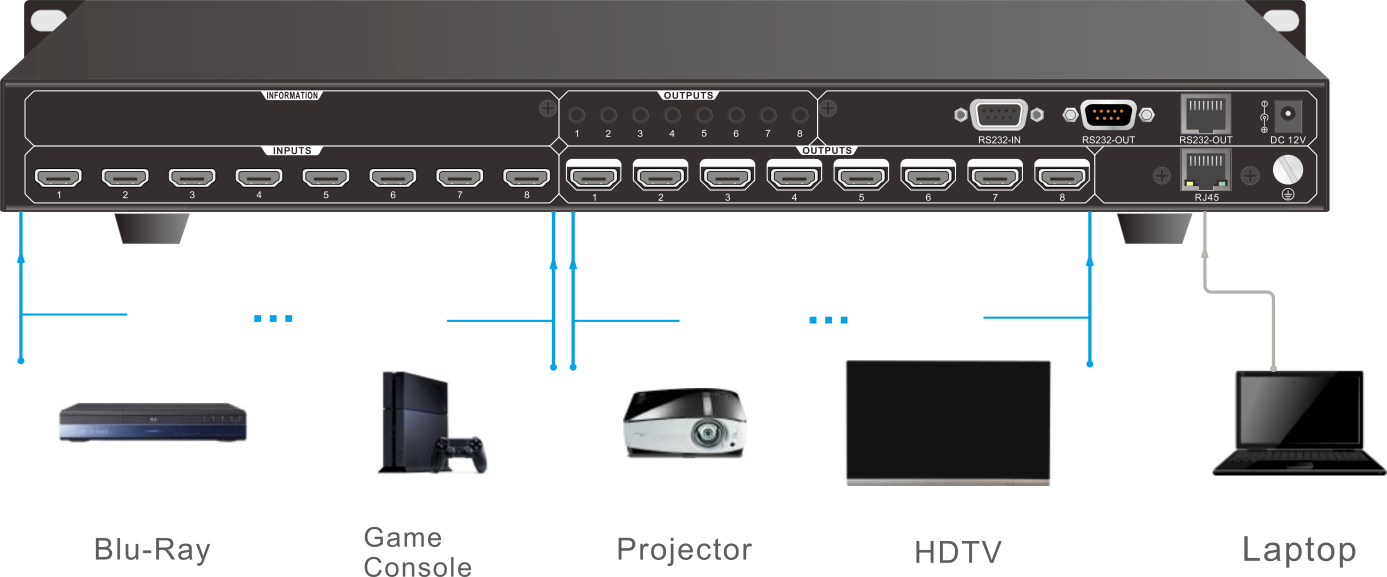

四、The connection diagram:
