HDMI HD Matrix is a professional 4K HDMI2.0 audio and video switcher, supporting 4/8 HDMI inputs, 4/8 HDMI outputs, 4/8 sets of SPDIF & LR analog audio outputs.
Name：HDMI HD Matrix
Model：HS-H0808AH2-4K
Coding：W202
send email
QR code
Prev: USB3.0 Video capture
Next: 8-channel HDMI matrix
Detail

HDMI HD Matrix      HS-H0808AH2-4K

一、Product introduction:

HS-H0808AH2-4K Series HDMI HD Matrix is a professional 4K HDMI2.0 audio and video switcher, supporting 4/8 HDMI inputs, 4/8 HDMI outputs, 4/8 sets of SPDIF & LR analog audio outputs. It supports HDMI 2.0, is compatible with HDCP2.3, and has a maximum output resolution of 4Kx2K@60Hz 4:4:4, HDR10 and Dolby Vision. The equipment control mode is flexible and diverse, supporting bidirectional infrared control, bidirectional serial port control, network port control, panel button control, EDID management and HDCP processing to ensure compatibility with signal sources and operations in various application scenarios.

二、Product features:

  • 4x4, 8x8 HDMI2.0 audio and video switching

  • Supports 4K/60 4:4:4, HDR, HDCP 2.3 compatible

  • 4/8 sets of SPDIF&L+R analog audio outputs, and any HDMI input or output audio de-embedding can be selected

  • Each set of SPDIF and L+R audio output is synchronized

  • Support L+R analog output audio volume adjustment

  • HDMI output ports 5~8 support 4K to 1080P downscaling

  • The HDMI output power supply is up to 5V 500mA and can be used with an active optical cable (AOC) cable

  • Support panel button control, IR infrared, RS232 command, TCP/IP network port control

三、Panel Description:

Front panel


serial number
name
description
1
Power indicator

Solid green light: power-on status;

Solid red light: standby state;

2
IR receiver head
Built-in infrared receiver to receive infrared signals from the remote control.
3
INPUT/ OUTPUT selection button

A total of 8 input source selection buttons, press the corresponding button to select the input source.

A total of 8 output source selection buttons, press the corresponding button to select the output channel.

4
ENTER
Confirm key
LOCK
The front panel button lock button, long press 3S to turn on or off the front panel key lock function
ALL

Select all buttons, one input signal switches to all output channels

CLEAR
Clear key, which is used to delete the wrong action
5
PRESET RECALL
HOLD TO STORE
Toggle the state save and recall buttons:

Press and hold the 1~4 button to save the current switching state

Press the 1~4 button to invoke the saved switching state

Back pane

l


number
name
description
1
INPUTS
8 HDMI inputs for connecting HDMI sources
2
OUTPUTS
8 HDMI output ports, connect display devices, and the 5th~8th ports support down-doubling function
3
AUDIO MATRIX OUTPUTS
There are 8 audio matrix output ports, each of which contains 1 SPDIF digital audio and 1 L&R analog audio, and the audio is synchronized with the output

SPDIF: Toslink audio dock, output HDMI de-embedded audio

L&R: RCA, output HDMI de-embedded audio

4
IR EYE
Connect the infrared receiver and control the unit with the remote control configured with the machine.
5
RS232
Connect the control device and send instructions to control the machine or third-party equipment through the serial communication software
6
FIREWARE
USB port, connect to a computer to upgrade the device firmware
7
TCP/IP
Connect the control device for TCP/IP network port control
8
DC 24V
Power input, connect to 24VDC 2.71A adapter
四、Technical indicators:
HDMI audio and video

Enter the signal
4/8   HDMI
Enter the connector
4/8   Type A 19-pin female connector
Enter the resolution
Up to 4K@60Hz 4:4:4, HDR
Output signal
4/8    HDMI
Output connectors
4/8    Type A 19-pin female connector
Output resolution
Up to 4K@60Hz 4:4:4, HDR10
HDMI output
Up to 5V 500mA, for use with AOC cable
HDMI standard
2.0
HDCP standard
2.3
HDMI embedded audio
LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, DTS-HD® Master Audio™ pass-through
SPDIF audio output

Output signal
4/8    SPDIF
Output connectors
4/8    Toslink audio dock
Audio format
PCM, Dolby, DTS, DTS-HD
Frequency response range
20Hz – 20KHz,±1dB
Maximum output level
±0.05dBFS
Total Harmonic Distortion plus Noise (THD+N)
< 0.05%
Signal-to-noise ratio (SNR).
> 90dB
Crosstalk isolation
< -70 dB
Noise floor
-90dB
L+R analog audio output

Output signal
4/8   L/R
Output connectors
4/8   L&R (RCA).
Audio format
PCM 2CH
Frequency response range
20 Hz – 20 kHz, ±1dB
Maximum output level
2.0Vrms ± 0.5dB
Total Harmonic Distortion plus Noise (THD+N)
< 0.05%
Signal-to-noise ratio (SNR).
> 80dB
Crosstalk isolation
< -80 dB,
LR level deviation
< 0.05 dB
Output loading capacity
1k ohm or more
Noise floor
-80dB
Control port
(1) FIRWARE, (1) IR EYE, (1) RS232, (1) TCP/IP,
Port connectors
(1) USB-A, (1) 3.5mm miniature audio jack, (1) 3-pin plug-in terminal, (1) RJ45
Transmission distance
4K/60Hz/4:4:4：5m
4K/60Hz/4:2:0：10m；
1080P：15m
bandwidth
18Gbps
Operating temperature
-5℃ ~ +55℃
Storage temperature
-25℃ ~ +70℃
relative humidity
10% ~ 90%
power supply
24V DC 2.71A
power consumption
24W
Size(W*H*D)
436.4mm*44mm*236mm
net weight
3kg

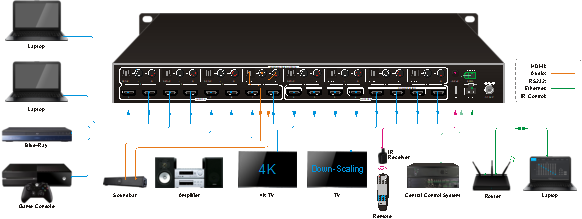

五、 Connection diagram:

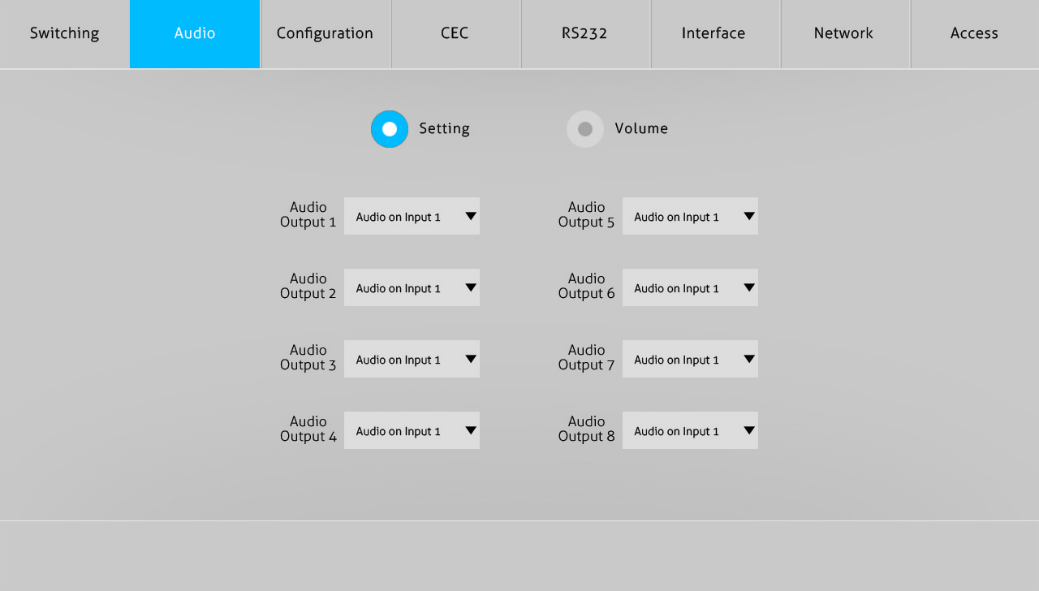

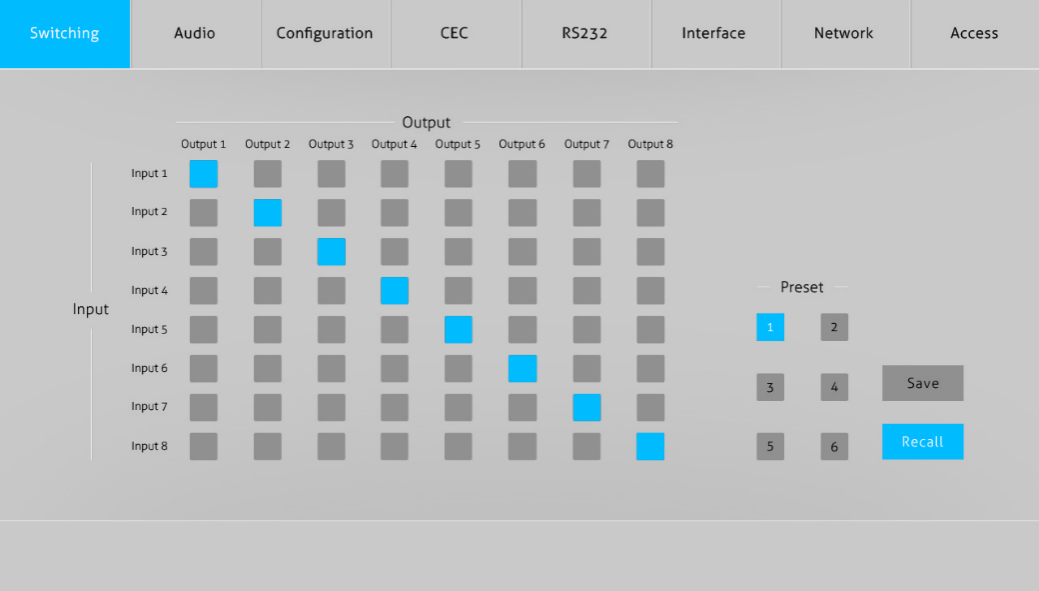

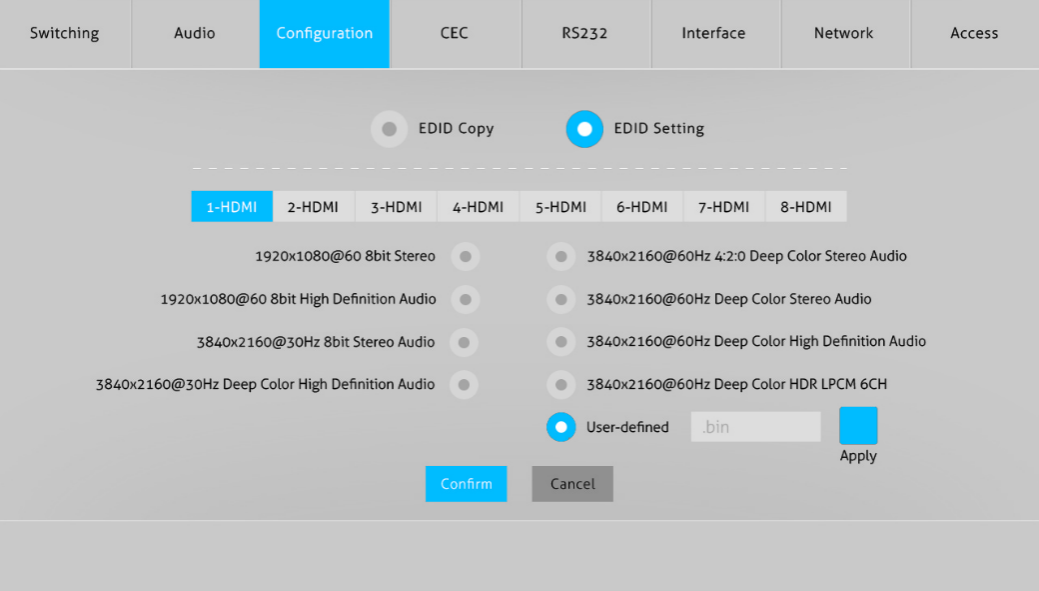

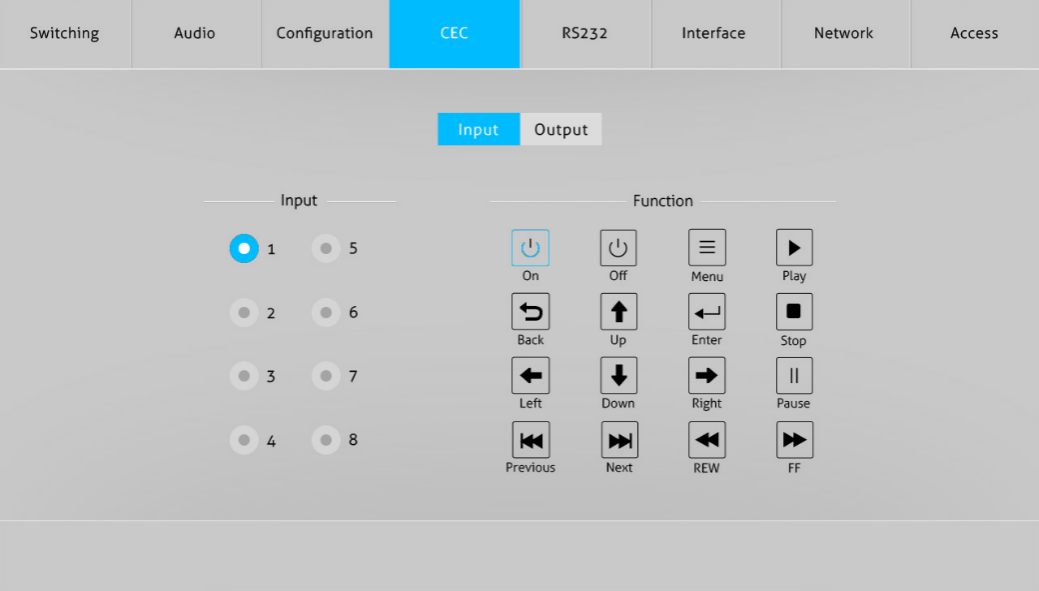

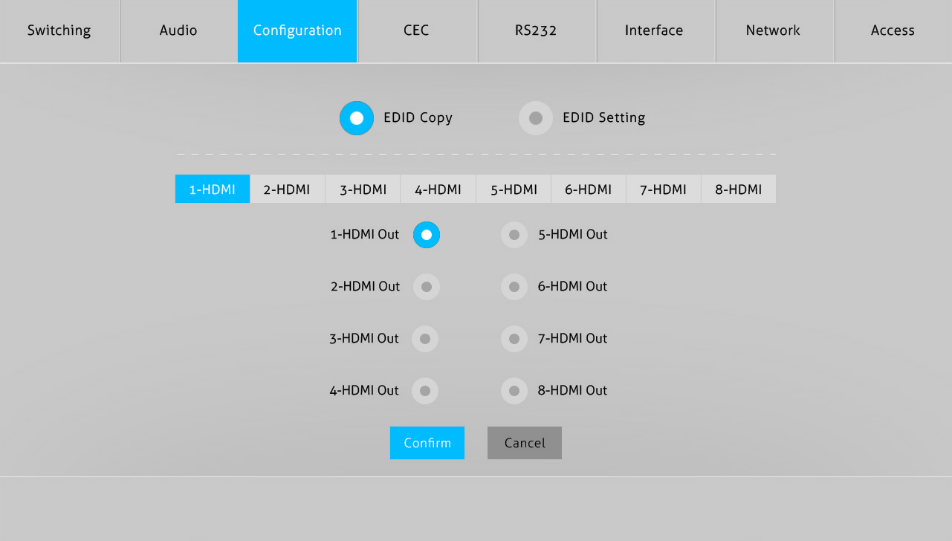

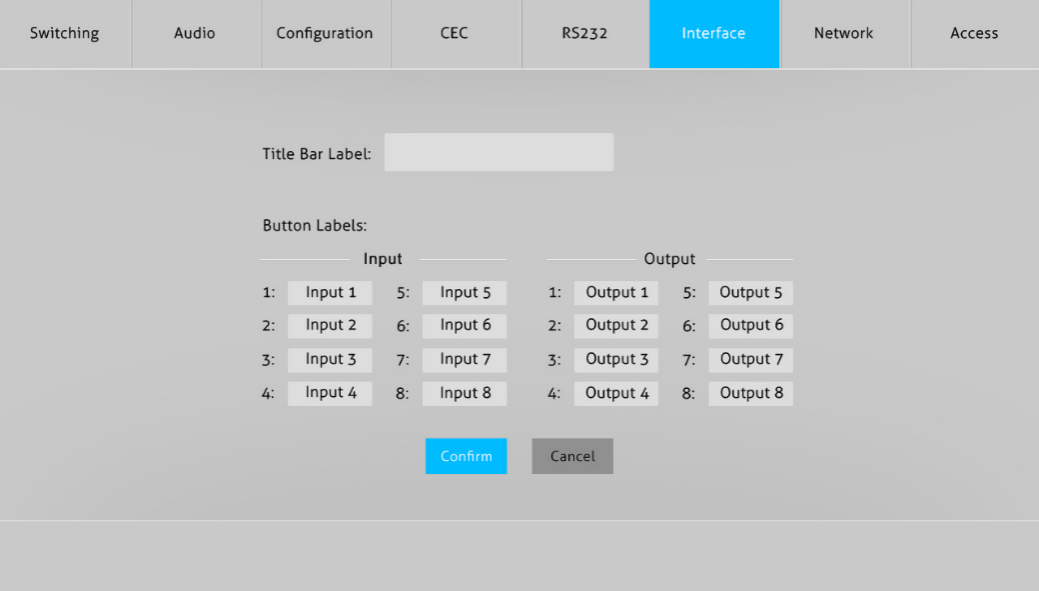

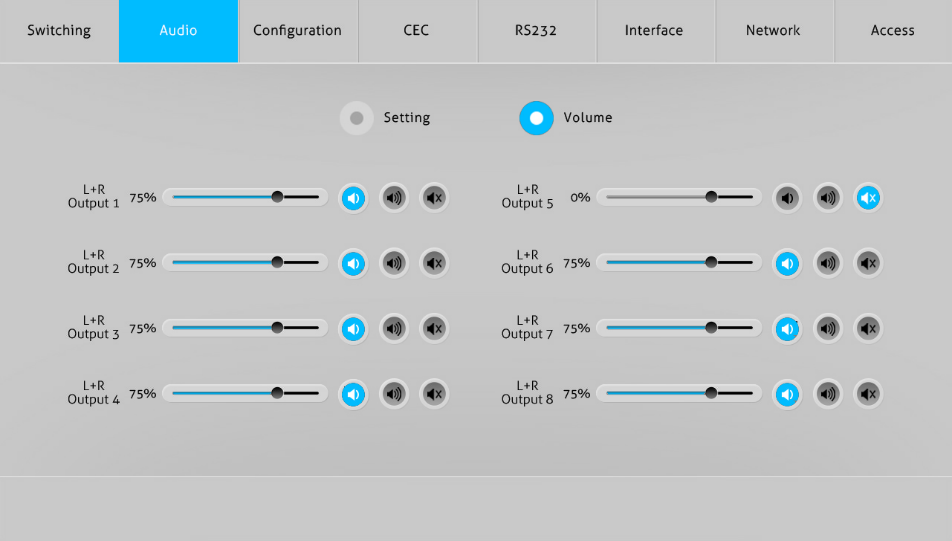

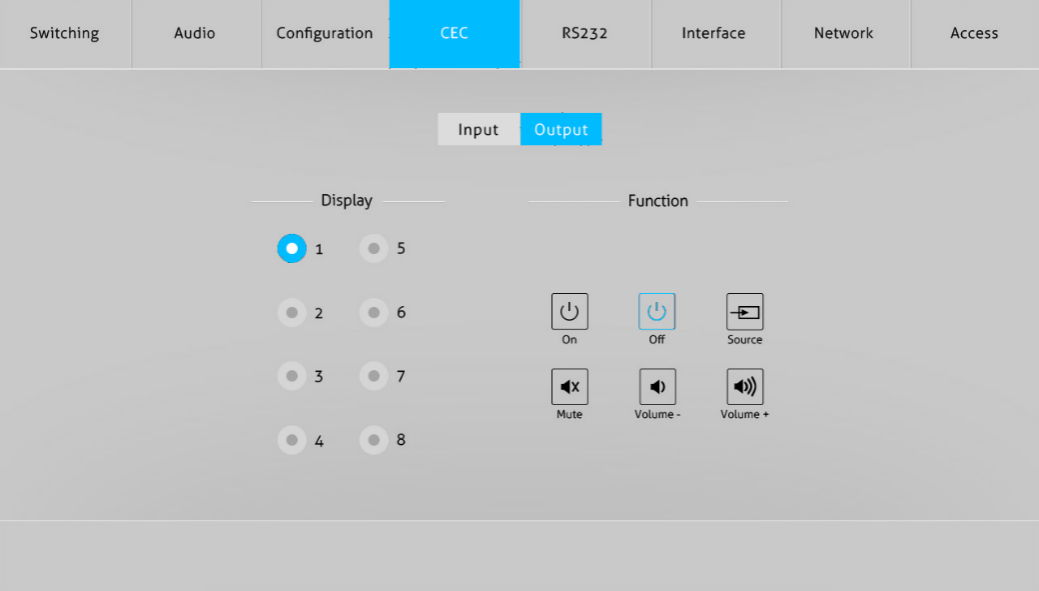

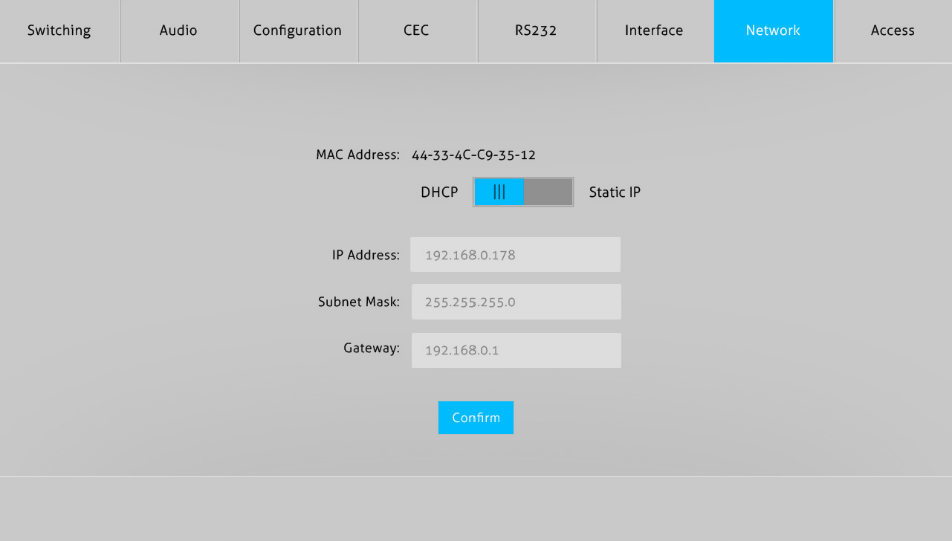

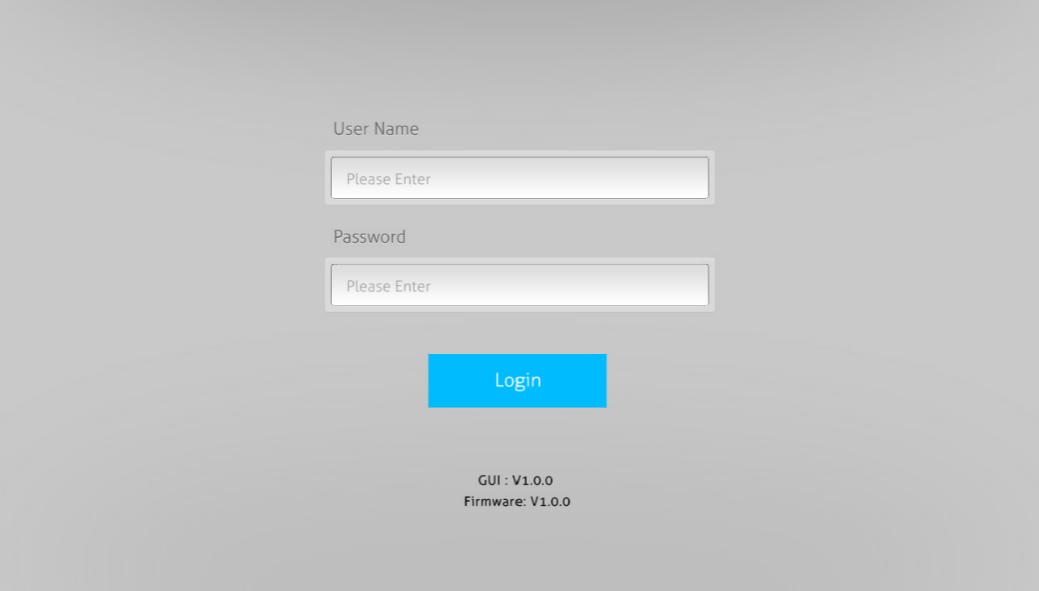

六、Part of the software interface:
