16 Decoding Matrix

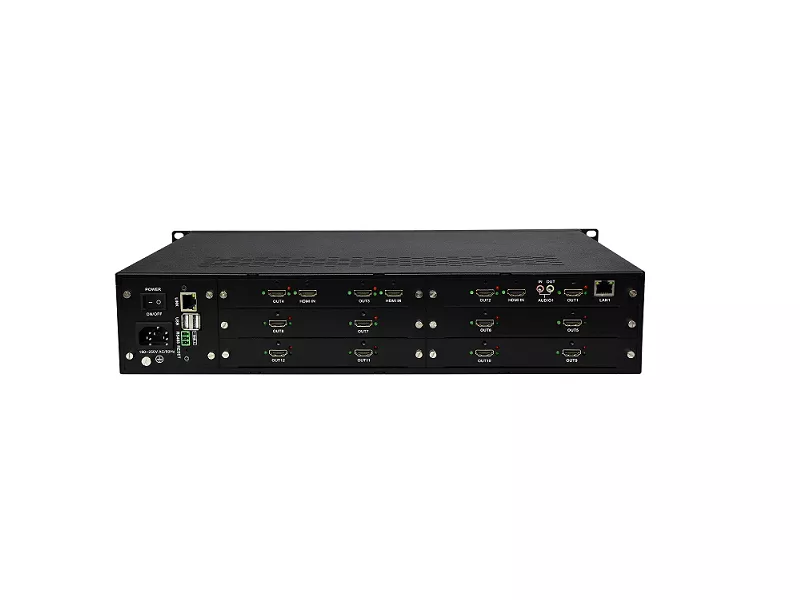

Digital Decoding Matrix   HS-6116C

一、product description：

HS-6116C series H.265 digital decoding matrix adopts the latest security-specific codec chip and is specially designed for H.265 standard and 4K ultra-high definition codec. The product adopts embedded LINUX architecture to ensure the stable operation of the system. This machine Supports signal input from video network cameras, video recorders, HS series high-definition encoders, etc., realizes 16-channel HDMI output, with a maximum resolution of 4K*2k3840*2160@60fps, and can decode, encode, splice, split, picture-in-picture, and Roaming and other functions;

The HS-6100C series H.265 digital decoding matrix adopts a modular design and provides a one-stop solution for the big data digital monitoring system to provide decoding on the wall and multi-signal input encoding for the largest program of engineering projects; the equipment adopts an all-aluminum standard chassis. , the structure is beautiful and reliable, and the heat dissipation structure is good. Widely used in Xueliang engineering, smart cities, banks, education, electric power, large and ultra-large digital security monitoring systems;

二、Product Features：

• The equipment adopts a modular structure design, and one machine can be assembled from multiple modules according to needs;

• Single module: with 1 HDMI2.0 output;

• Optional HDMI input, supporting up to 1080P encoding input;

• Adopt multi-module design, single card single channel, standard 1U/2U/4U/8U/12U/16U and other super large chassis chassis;

• Supports cascading of multiple devices. When the module is plugged in and plugged in, the device is equipped with standard interfaces such as RS485;

• Support H.265 Main Profile Level5.1, H.264 Baseline/Main/High Profile Level5.0, MPEG4 SP L0~L3/ASPL0-L5, MJPEG/JPEG Baseline decoding;

• Support 1 channel 4K/4 channels 1080P/8 channels 720P/16 channels D1 video decoding;

• Support standard video decoding such as 4K, 500W, 300W, 200W, 130W;

• Support standard formats such as PAL/NTSL; support video file playback;

• Support standard ONVIF access and RTSP direct video streaming;

• Output: supports 1 HDMI2.0 interface output; backward compatible with HDMI1.3 and other versions; supports 1 HDMI2.0 output 3840×2160@60fps; single screen supports up to 16 screen splits;

• Network: With 1 10/100/1000Mbps adaptive network port, one network port is connected to the network for signal input, and one network port realizes data communication between modules (multiple units use the cascading function);

三、Technical indicators：

四、数字解码矩阵订货型号及规格:
