HDMI to USB3.0 video collector, HDMI audio and video input signal, external analog audio input, meets UVC and UAC standards, no need to install drivers and settings, plug and play, easy to use.
Name：USB3.0 Video capture
Model：HS-UH60P
Coding：W501
send email
QR code
Prev: 150m-HDBaseT Transmitter
Next: HDMI HD Matrix
Detail

HDMI to USB3.0 Video Capture Card      HS-UH60P

一、Product Introduction:

HS-UH60P series HDMI to USB3.0 video capture has the advantages of high performance, high compatibility, easy to carry and simple installation. Collect HDMI audio and video input signal, the maximum video resolution of the collected video is 1080p60Hz, support external analog audio input, and you can choose analog audio signal or digital audio signal for acquisition (digital audio signal comes from HDMI input port, analog audio signal comes from AUDIO audio input port). With HDMI loop output, it supports stripping analog stereo audio output from HDMI sources. USB3.0 compatible chips include Intel, Renesas, ASNedia, Fresco Logic, etc. The HDMI to USB3.0 video grabber meets UVC and UAC standards, does not require installation drivers and settings, plugs and plays, and is easy to use.

二、Product Features:

  • HDIM input and HDMI loop output support HDMI2.0, HDCP2.2, and the resolution is up to 4K2K@60Hz (4:4:4);

  • Support acquisition resolution is 480i~1080p60Hz;

  • Support resolution 4K2K@60Hz downscaling, 1080p60Hz video capture (Note: resolution 4K2K@50/60Hz4:2:2 does not support downscaling);

  • Support HDMI loop output;

  • Supports stripping analog stereo audio output from HDMI sources;

  • Support digital or analog audio signal acquisition (digital audio signal from HDMI input port, analog audio signal from AUDIO audio input port);

  • Compatible with Windows, Linux and OS X operating systems;

  • Compatible with USB 3.0, the transfer rate reaches 300~350Mb/s;

  • Compatible with VLC, OBS, XSPLIT and AMCAP acquisition software;

  • No need to press the drive, plug and play;

三、Technical Indicators:

Input port

1×HDMI IN [19-pin female]

1×AUDIO IN [3.5mm Stereo Mini-jack]

Output

1×USB [USB Type A, USB3.0—300~350Mb/s]

1×HDMI OUT [19-pin female]

1×AUDIO OUT [3.5mm Stereo Mini-jack]

HDMI input resolution

Reaching 4k2k@60 (4:4:4)

(Note: 4k2k@50/60Hz 4:2:2 does not support frequency reduction.)

HDMI output resolution

640×360, 640×480, 720×480, 720×576, 800×600, 856×480,960×540, 1024×576, 1024×768, 1280×720, 1280×1024,1280×960, 1280×800, 1368×768, 1440×900, 1600×1200,1680×1050, 1920×1080

HDMI loop-through resolution
Reaching 4K2K@60Hz (4:4:4)
Frame rate
25/29.97/30/50/59.94/60fps
Audio and video capture
Standard UVC (USB Video Class) and UAC (USB Audio Class)
OS is supported

Windows 7/8/10, Linux (Kernel version 2.6.38 or later.)Ben, OS X (10.8 or later)

Software compatible

OBS (Windows), Windows Media Encoder (Windows), Adobe
Flash Media Live Encoder (Windows, OS X), VLC (Windows,OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast ( Windows, OS X) and Potplayer(Windows) etc.

enclosure
Metal case
color
argent
size
98mm [L] x 60mm [W] x 17mm [H]
weight
125g
Power consumption
3.4W
Operating temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
relative humidity
20 - 90% RH (non-condensing)

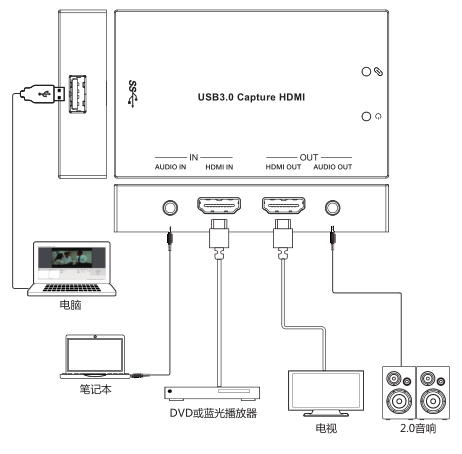

四、The connection diagram:
