SDI HD Video Decoder

SDI HD Video Decoder      HS-J200HDMI-RS

一、Product Introduction:

HS-J200HDMI-RS decoder is a professional HD H.265 (HEVC) hardware decoder that brings multiple video streams to SDI. Without relying on a computer,it decodes any IP streams including HTTP/SRT/RTSP/RTMP/UDP/RTP/UTP, etc, and outputs the video to the display wall in up to 9 grids or free layout, and dynamic switching is supported.

HS-J200HDMI-RS has high integration and low costs . It can be widely used in various HD video systems. It supports POE power supply, OLED real-time display to ensure uninterrupted video streaming. And also supports an RTMP server for direct connection with encoders.

二、Product Feature:

• Support H.265 and H.264 decoding.

• Support 2XSDI and 1X audio output.

• Support embedded RTMP server, maximum support 1Gbps concurrency.

• Support HTTP/HTTPS/RTSP/RTMP/SRT/UDP/RTP protocol.

• Support 9channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/RTMPS/UDP/RTP.

• LCD display device name, IP address, resolution and working status.

• Support up to 1080P@60hz resolution output.

• Support to set the cache.

• Support 1ch, 4ch, 9ch decoding simultaneously.

• Support boot screen customization.

• 1000M network interface uses full duplex mode.

• Support POE power supply(optional).

• Support SDK, secondary development.

• WEB control.

三、Specifications:

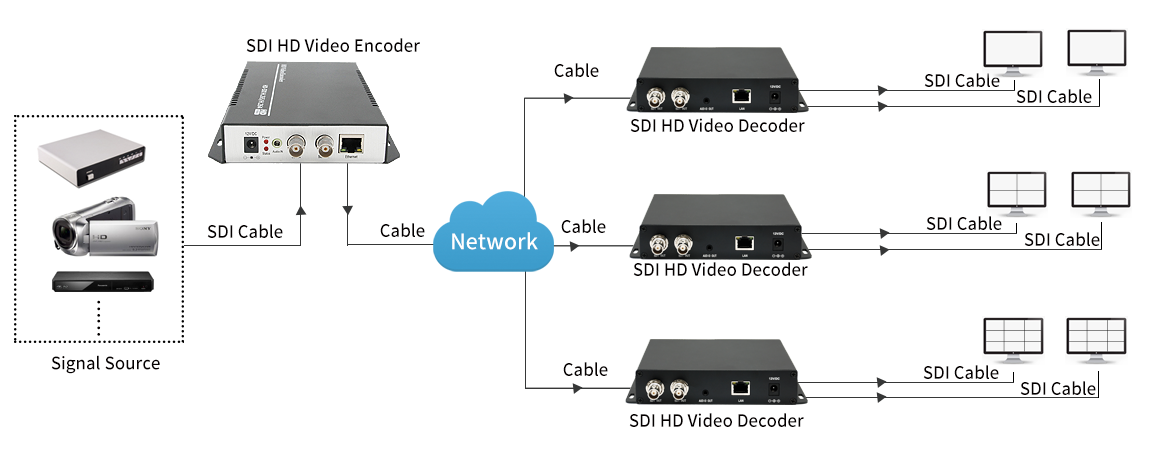

四、Topological Diagram:

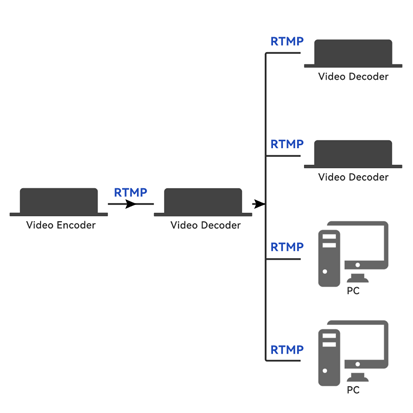

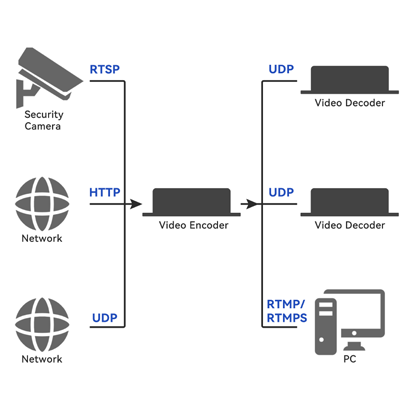

RTSP/HTTP/UDP/HTTPS/SRT/RTMP   forward to RTMP/RTMPS/UDP/RTP	Embedded RTMP server

Note:

1. When the input stream resolution is 1080P, 4 channels decoding output streaming can be supported.

2. When the input stream resolution is 720P, 9 channels decoding output streaming can be supported.
