Name：SDI HD Video Encoder
Model：HS-B200SDI-TS
Coding：W502
send email
QR code
Prev: SDI HD Video Decoder
Next: 150m-HDBaseT Transmitter
Detail

SDI HD video encoder   HS-B200HDMI-TS

一、Product Introduction:

The SDI video encoder can deliver H.264/H.265/MJPEG encoding SDI video streams of independent IP output to various servers for live application, such as Wowza media server, windows media server, social media platform, and some other servers based on SRT/RTSP/RTMP/RMPTS/ HLS/ TS/ Onvif protocols. HORGB video encoder is widely applied in hotel TV systems, school teaching, live broadcasting. Support POE power supply, OLED real-time display to ensure uninterrupted video streaming.Not only single channel, we also produce multichannel HDMI video encoder which is packed with 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.

二、Product Feature:

  • OLED display IP address, resolution and working status.

  • Support 1 channel SDI loop output.

  • Support Digital audio/Analog audio loop out.

  • Support 4 streams output at the same time.

  • No need to access video, audio can be coded separately.

  • POE power supply （Optional）.

  • support H.265 /H.264 and MJPEG.

  • support AAC / G.711 Advanced Audio Coding format quality.

  • 1000M network interface uses full duplex mode.

  • mainstream and secondary stream can be pushed to the different server.

  • Supports up to 720P, 1080P @ 30/60HZ HD video input/output.

  • Support image parameter settings.

  • support HDCP protocol and Blu-ray.

  • support HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, ONVIF protocol.

  • WEB interface, English, and Chinese is optional for configuration interface.

  • WEB interface management authority.

  • Support remote management in WAN(WEB).

  • Support Custom output resolution and image rotation.

  • Support one key backup and import the configuration files, Support one key to restore the factory configuration.

  • Provide API agreement document for secondary development.

  • Support ONVIF/GB28181 protocol, Support access to NVR and security platforms.

  • Support WEB online Preview.

  • Support output stream encryption.

  • Support bi-directional audio when with video decoder.

  • Support LOGO/ Image/ Text Overlay, support adjusts font size, scrolling subtitles and add mosaic watermark.

三、Specifications:

Model

HS-B200HDMI-TS

Video

Input interface

1×SDI

Support resolution

1080P\1080i\720P/576P/576i/480P/480i etc.

Frame rate

≤60

Output interface

1×Ethernet port (RJ45), 1×SDI

Video encoding

H.265/H.264/MJPEG

Code Rate control

16kbps- 12Mbps

Code Rate

CBR/VBR

Audio

Input interface

1×External audio, SDI built-in Audio

Output interface

1×External audio

Audio encoding

ACC, G711

Sampling rate

Auto

Bit-rate Option

32k,44.1K,48K,64K,96K,128K,160K,192K,384K

Sampling Accuracy

24 Bit

Audio Data-rate

64Kb/s to 384Kb/s

Network

RJ45

1000M Ethernet port

Program streaming

HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, ONVIF(UDP/RTP)

Control Panel

Web panel (Language is English), remote upgrade

Firmware Update

Enable by uploading files to the dashboard

General

Dimension(W*L*H)

6.4*4.4*1.3in(163*111*32mm)

Gross Weight

0.35kg

Temperature

0 ~ 45℃（for working）,-20~60℃（for storing)

Humidity

<90%, non-condensing

Input Voltage

DC 12V/1A

Power Consumption

5W

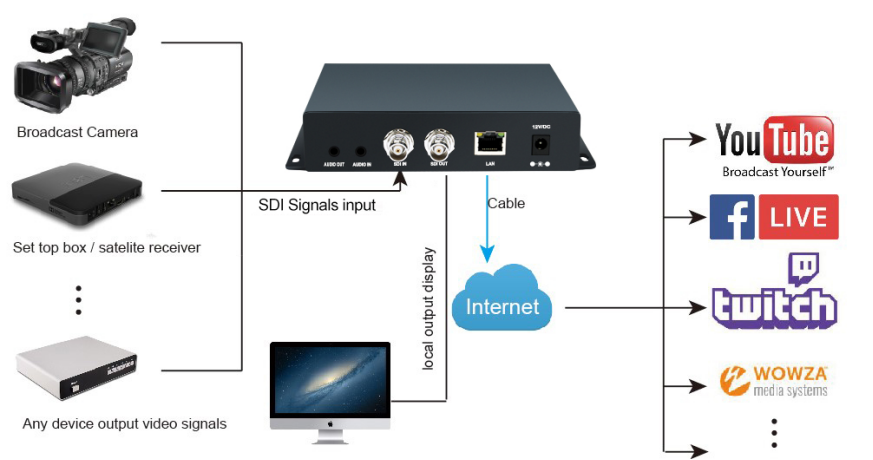

四、Topological Diagram:
